# OpenIMSs

A community effort to bring up a comprehensive open source environment for real life development of 4G/5G/NR voice/video/data/RCS/IM services.

We started from https://github.com/herlesupreeth/docker_open5gs , and begin to generalize and expand from it

Status:

  • Open5GS EPC Open5GS logo
  • SRSRan 4G/LTE Radio Access srsRAN logo
  • implementation of IMS CSCFs in OpenSIPS opensips logo
  • qryn monitoring metrics telemethry metrico qryn
  • portainer portainer

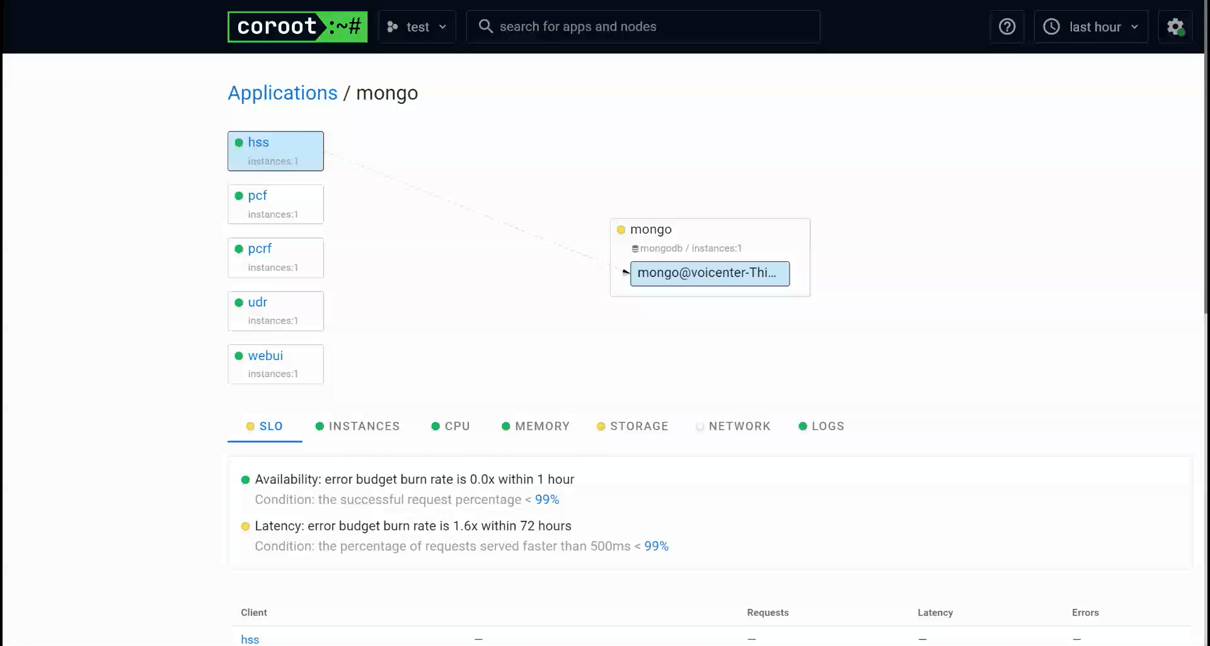

  • graphana grafana coroot

# Tested Setup

Docker host machine

  • Ubuntu 22.04

SDRs tested with srsLTE eNB

  • Ettus USRP B210 or Chinese compatible 😉

# Build and Execution Instructions

git clone https://github.com/VoicenterTeam/openimss.git
cd openimss/base
docker build --no-cache --force-rm -t docker_openimss_open5gs .

cd ../ims_base
docker build --no-cache --force-rm -t docker_openimss_opensips .

cd ../srslte
docker build --no-cache --force-rm -t docker_openimss_srslte .

cd ../ueransim
docker build --no-cache --force-rm -t docker_openimss_ueransim .

# Build and Run using docker-compose

cd ..
set -a
source .env
docker-compose build --no-cache
docker-compose up

# srsRAN eNB
docker-compose -f srsenb.yaml up -d && docker attach srsenb
# srsRAN gNB
docker-compose -f srsgnb.yaml up -d && docker attach srsgnb
# srsRAN ZMQ based setup
    # eNB
    docker-compose -f srsenb_zmq.yaml up -d && docker attach srsenb_zmq
    # gNB
    docker-compose -f srsgnb_zmq.yaml up -d && docker attach srsgnb_zmq
    # 4G UE
    docker-compose -f srsue_zmq.yaml up -d && docker attach srsue_zmq
    # 5G UE
    docker-compose -f srsue_5g_zmq.yaml up -d && docker attach srsue_5g_zmq

# UERANSIM gNB
docker-compose -f nr-gnb.yaml up -d && docker attach nr_gnb

# UERANSIM NR-UE
docker-compose -f nr-ue.yaml up -d && docker attach nr_ue

# Configuration

For the quick run (eNB/gNB, CN in same docker network), edit only the following parameters in .env as per your setup

MCC
MNC
TEST_NETWORK --> Change this only if it clashes with the internal network at your home/office
DOCKER_HOST_IP --> This is the IP address of the host running your docker setup
SGWU_ADVERTISE_IP --> Change this to value of DOCKER_HOST_IP set above only if eNB/gNB is not running the same docker network/host
UPF_ADVERTISE_IP --> Change this to value of DOCKER_HOST_IP set above only if eNB/gNB is not running the same docker network/host

If eNB/gNB is NOT running in the same docker network/host as the host running the dockerized Core/IMS then follow the below additional steps

Under mme section in docker compose file (docker-compose.yaml, nsa-deploy.yaml), uncomment the following part

...
    # ports:
    #   - "36412:36412/sctp"
...

Under amf section in docker compose file (docker-compose.yaml, nsa-deploy.yaml, sa-deploy.yaml), uncomment the following part

...
    # ports:
    #   - "38412:38412/sctp"
...

If deploying in SA mode only (sa-deploy.yaml), then uncomment the following part under upf section

...
    # ports:
    #   - "2152:2152/udp"
...

If deploying in NSA mode only (nsa-deploy.yaml, docker-compose.yaml), then uncomment the following part under sgwu section

...
    # ports:
    #   - "2152:2152/udp"
...

# Register a UE information

Open (http://<DOCKER_HOST_IP>:3000) in a web browser, where <DOCKER_HOST_IP> is the IP of the machine/VM running the open5gs containers. Login with following credentials

Username : admin
Password : 1423

Using Web UI, add a subscriber

# srsLTE eNB settings

If SGWU_ADVERTISE_IP is properly set to the host running the SGWU container in NSA deployment, then the following static route is not required. On the eNB, make sure to have the static route to SGWU container (since internal IP of the SGWU container is advertised in S1AP messages and UE wont find the core in Uplink)

# NSA - 4G5G Hybrid deployment
ip r add <SGWU_CONTAINER_IP> via <SGWU_ADVERTISE_IP>

# Not supported

  • IPv6 usage in Docker
